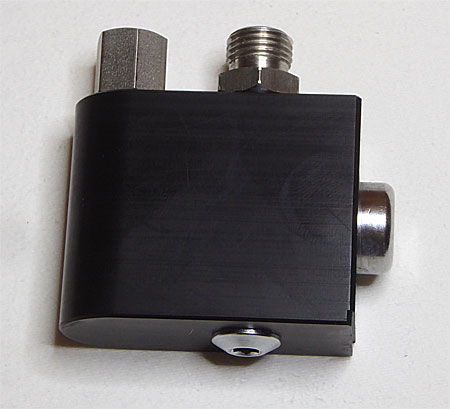

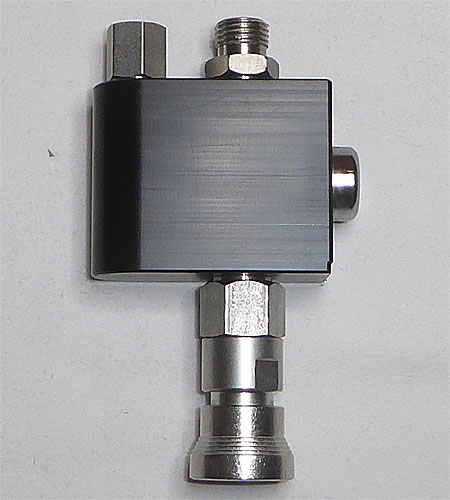

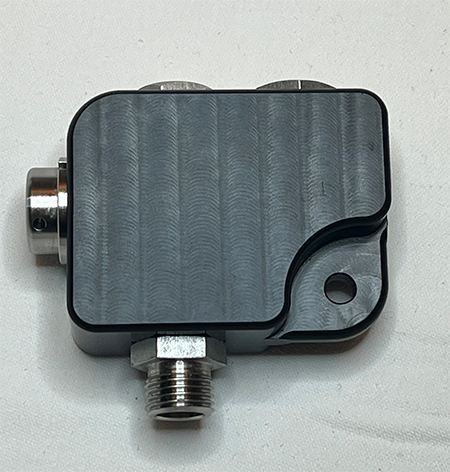

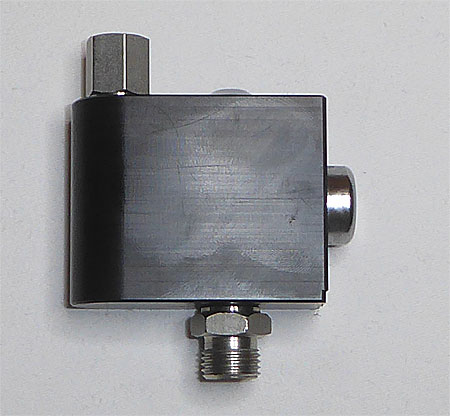

CM0107

325,-€





CMF valve

standard jet installed is the SPK0005 (0.0030 )

standard fittings are 9/16 reg for gas in and 3/8 UNF for gas out. Fittings are interchangeable

Similar to CM0105 but a bit bigger and does have the option for alternative/second "gas in" connection

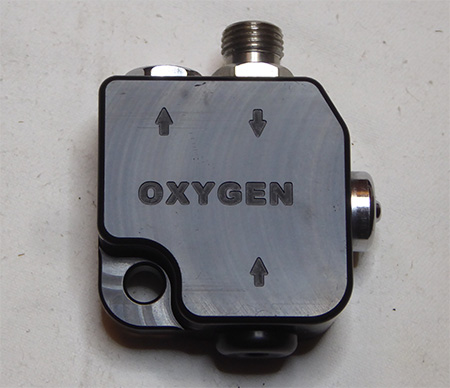

CM0108

315,-€



NEW CMF valve

standard jet installed is the SPK0005 (0.0030 )



This is a constand mass flow MAV!

Fittings are interchangeable

also here QC6 fitting is possible of course

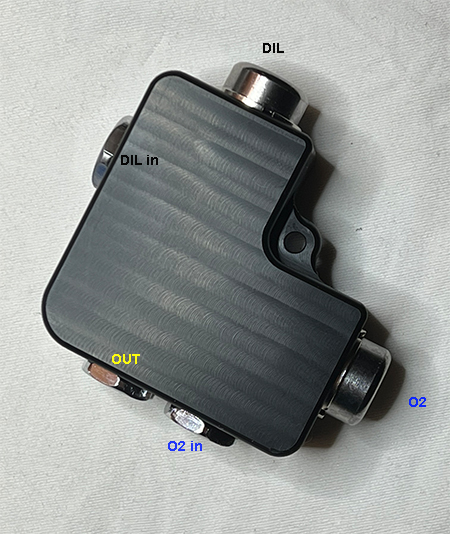

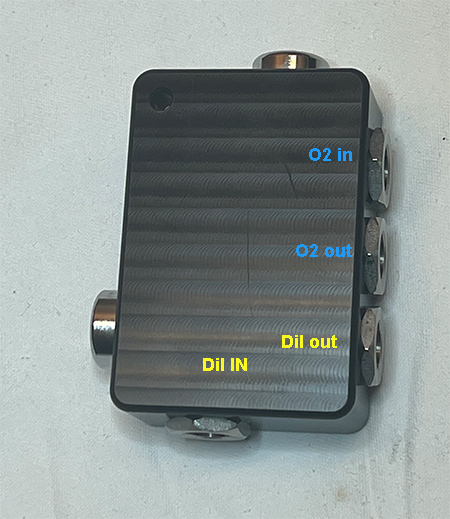

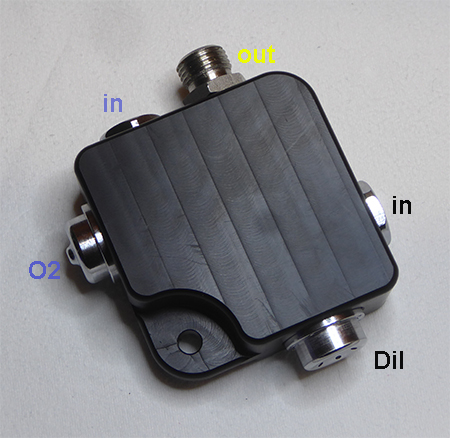

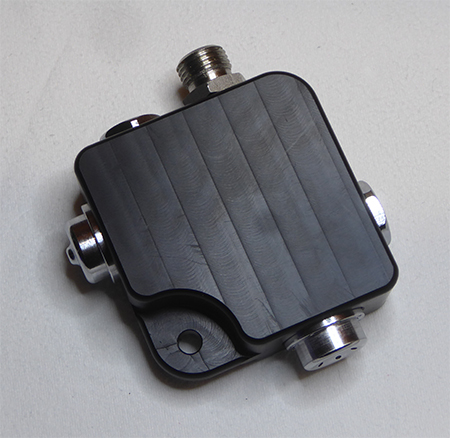

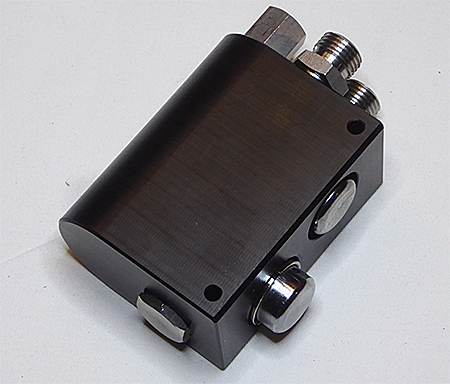

CM0200

375,-€





NEW CMF valve

double gas  function

standard jet installed is the SPK0005 (0.0030)

standard fittings are 9/16 UNF  for gas in and 3/8 UNF for gas out.

Fittings are interchangeable

2 holes for bungee mount

at bottom additional GAS IN for DIL , thread 9/16 fem

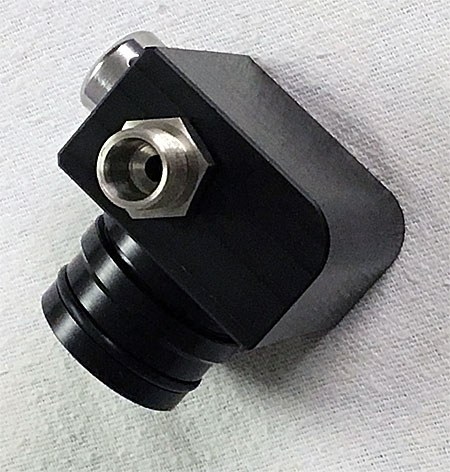

CM0300

315,-€





NEW CMF valve

p-port style, knob 90 degree

standard jet installed is the SPK0005 (0.0030)

standard fittings for gas in is  9/16 UNF

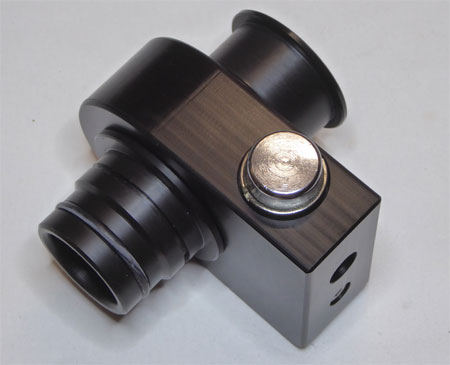

CM0400

315,-€



NEW CMF valve

in line, in hose, direct bag style

standard jet installed is the SPK0005 (0.0030)

does come with 3/8 UNF hole for gas in connection

various hose/bag connections are possible

fittings are also interchangable, upper and lower connection can be swapped

CM0405

255,-€



NEW MAV

in line, in hose, direct bag style

no jet, standard MAV function

does come with 3/8 UNF hole for gas in connection

various hose/bag connections are possible

fittings are also interchangable, upper and lower connection can be swapped

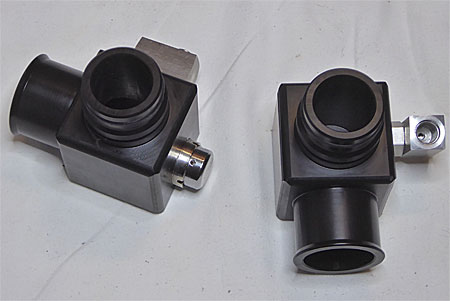

CM0500

325,-€

without the 3/8 angle



NEW CMF valve

elbow version standard jet installed is the SPK0005 (0.0030)

made fom one piece, so fittings are not chageable

gas feeding standard is 7/16 hole

tell us on ordering which side you wnat the hole

fitting: p-port -36mm hose

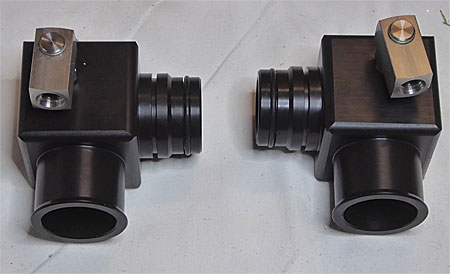

CM0505

260,-€

without the 3/8 angle





NEW CMF MAV

elbow version no jet installed, standard MAV function

made fom one piece, so fittings are not chageable

gas feeding standard is 7/16 hole

tell us on ordering which side you wnat the hole

fitting: p-port -36mm hose

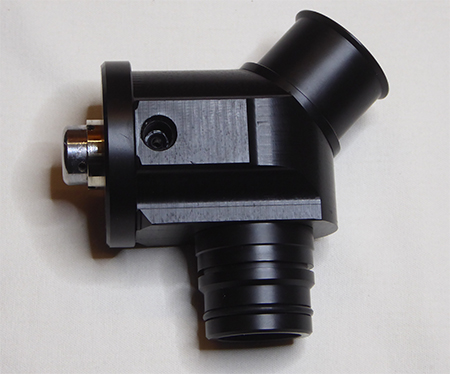

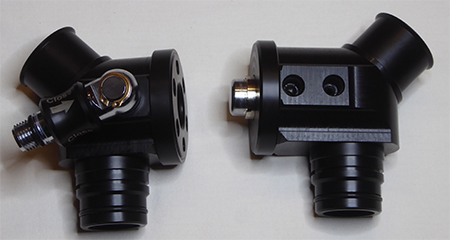

CM0515

325,-€

----------------

Non Jet version

CM0518

260,-€



NEW CMF valve

45 degree version standard jet installed is the SPK0005 (0.0030)

fittings are chageable

gas feeding standard is a UNF 3/8 hole

fitting: p-port -36mm hose

sample picture of possible combo for a CM unit, with exta inlet 3/8 hole

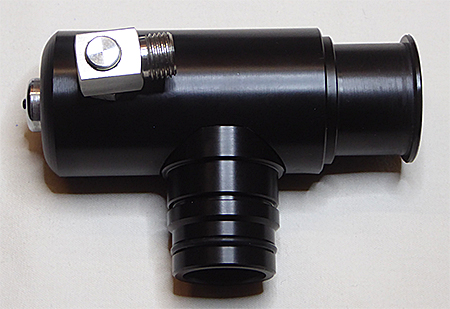

CM0600

325,-€

without LP angle



CMF MAV

round T-piece version,

various fittings are possible

standard jet installed : 0.0030

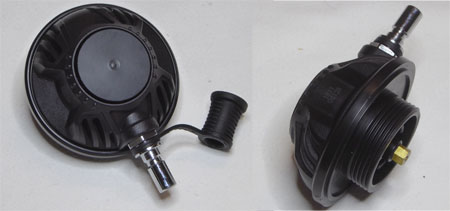

APEKS-Kiss-MAV

price follows

Modified APEKS inlet valve with 0,0030 Kiss jet installed

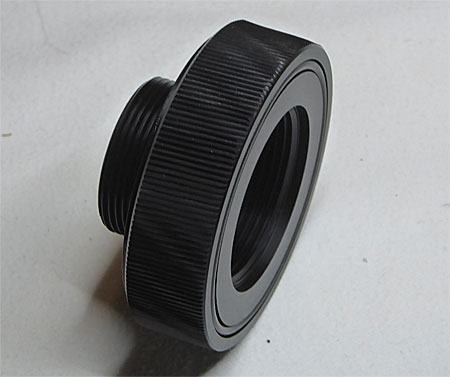

SiTech_Apeks
converter



47,-€

Adapterring to convert SITECH thread to APEKS thread

Sitech male thread

Apeks female

so an APEKS valve can be fitted where normally a SiTech valve is installed



CM0600

260,-€

CMF valve

p-port style, straight, slimline, round

standard jet installed is the SPK0005 (0.0030)

standard fittings for gas in is  9/16 UNF

diameter: 50mm

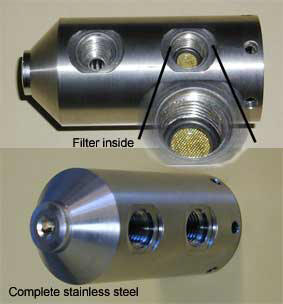

CM0070

340,-

Constant Mass Flow (CMF) Valve made by Hydrogom

Stainless steel  - manual addition of O2 is possible

comes with a new style filter

~0,8 L/min with IP ~12-13 bar

This new valves uses a 70.000 Lohm orifice (+/- 5%)

Please check here for update NEW CMF valve info

Never forget -A device like this can KILL you!!

Be sure you know what you do!!

There is no manual coming with this valve.

The valve and or any complete system
is for demonstration purpose only.

pic follws CM0072

98,-



replacement orifice for CMF valve



Type A aprox 0,7-0,8 l/min at 12-13 bar

Type B   aprox 0,7l/min at 16bar






T0305

98,- €

manual gas add (O2 or Dil)
-- does not have a jet, is a manual add only  --

unscrew the 9/16 adapter and you have 3/8 UNF female port
The inflator coupling is fixed in

it is turnable, so connection can be rotated

Gas in from 1stage  MUST be connected to the BCD coupling side!

Feb 2022: New version has now standard BCD nippel installed

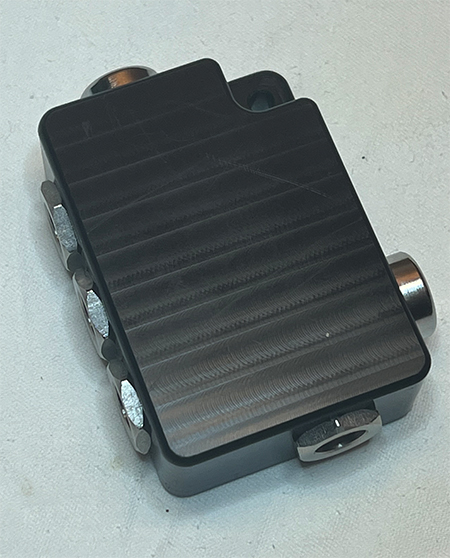

CM0155

290,- €

   DOUBLE GAS   MAV

this modell does NOT have an orifice installed.


It is just a double gas manual add, with NO constant flow

as shown with three adapters/fitting installed
standard is 2x gas in with male 9/16 fitting and gas out female 3/8
When taking of the metall adapters, thread is 7/16 UNF

lower connection has 9/16 female thread

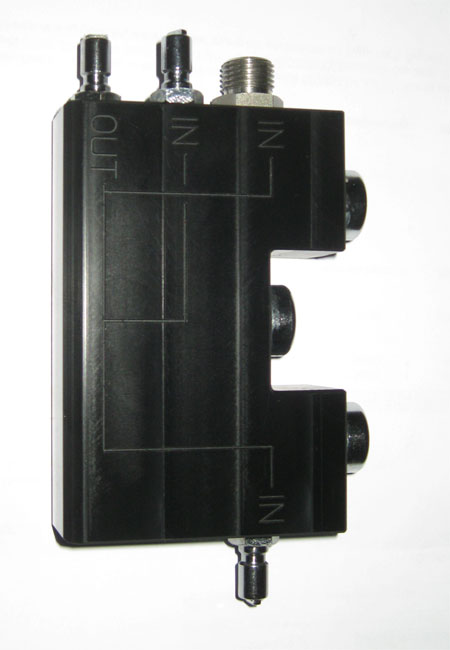

CM0157

395,- €

   Triple GAS   MAV

this modell does NOT have an orifice installed.


It is just a triple gas manual add, with NO constant flow

as shown with three adapters/fitting installed on top and one on the bottom.

Fitings are interchangeable






CM0158

465,- €



   Triple GAS   MAV    with jet

The CM0157 can also be ordered with Jet installed at the middle push button

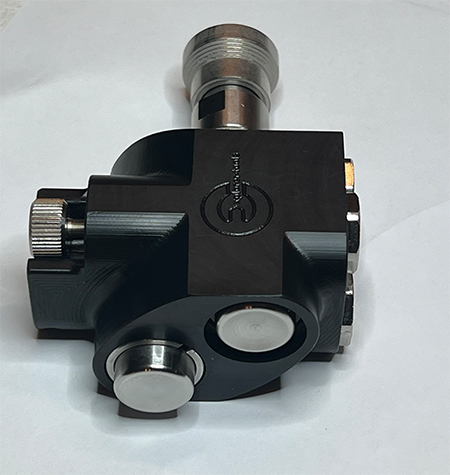

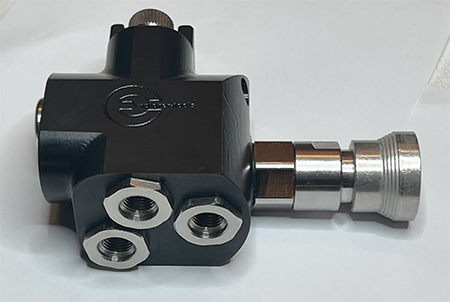

CM0160

295,- €

Manifold with manual gas add and Swagelok QC6 connector

Pos 1 and 2 are always connected open

(A shut off can be placed to Pos 1 or 2 if wanted)



Pos 3 works as manaul gass gass add

Pos 4 extra gas gan be added by a QC6 connector

Top fittings are (inter) changeable

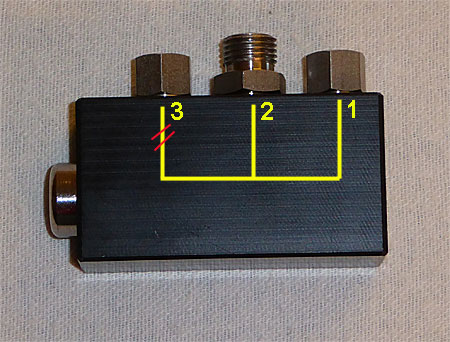

CM0161

230,-€



Manifold with manual gas add

Pos 1 and 2 are always connected open

(A shut off  or blind plug can be placed to Pos 1 or 2 if wanted)



Pos 3 works as manaul gass gass add

Top fittings are (inter) changeable

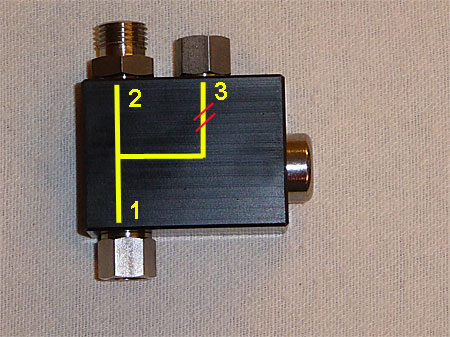

CM0162

220,-€



Manifold with manual gas add

Pos 1 and 2 are always connected open

(A shut off or blind plug can be placed to Pos 1 or 2 if wanted)



Pos 3 works as manaul gass gass add

Top fittings are (inter) changeable






SPK0004

36,- €



Replacement orifice for the KISS MAV

or built your own

Diameter 0.0035



SPK0005

36,- €

Replacement orifice for the KISS MAV

or built your own

Diameter 0.0030

SPK0006

36,- €

Replacement orifice for the KISS MAV

or built your own

Diameter 0.0025

IMPORTANT  - all orifices will be produced with a possible max tolerance of +0.0002 -  IMPORTANT

for example:  a 0.0030 jet can be just 0.0030 or 0.0031 or 0.0032

Aprox flow at 217PSI/15bar measured with air

0.0025"  0.55 LPM  --   0.0030"  0.8 LPM   --  0.0032" 0.9LPM  --  0.0035" 1.1 LPM

Thread is UNF 10-32




P0075

15,- €

Cap to close  --  Apeks DS4

for constant Intermediated pressure

 including o-ring


NEW PIC follows CM0003

13,- €



Service Kit Hydrogom CMF valve

for the latest edition of CMF valve (with white filter) , now with Filter included

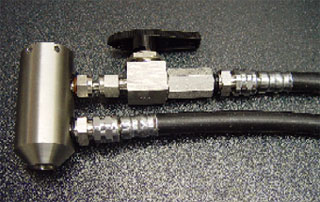

CM_SET 3

N/A

CMF valve

one LP hoses, one inflator hose, standard

Swagelok ball valve, SS

set is coming with Flex hoses - tell us lenght and style

pic follows CM0050

175,- €



Swagelok Ball valve KITT

ready to fit to CMF with all adapters (as seen on CM_set3)


T0012

29,-€



Flowmeter

Range 0,1 - 1,0 (1,2) l/min Oxygen
