Of course the parts shown on this web site do not have  CE  --  It is for demonstration purpose only...

Frameset Pos

295,-€



comes as set including the two holders/screws









245,-€

Frame only

Frame(stand) for MK VI - Se7en

how to mount it  pdf

Stainless steel, 4mm

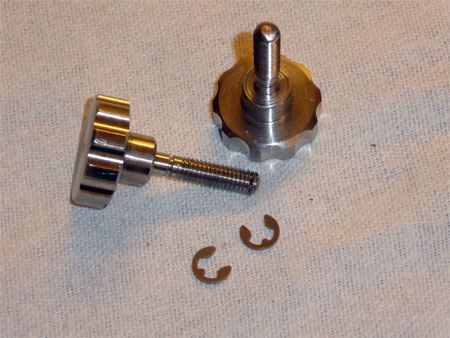

Screw set scrubber lid

45,- Euro

two new special screws for the scrubber lid makes it way easier to open and close the scrubber. Just replace two (across) of the original by these new, put the clip on and scrubber open and closes while screwing.

Click on the picture to see the video how easy it works

Screws and clip are made of V4A (1,4571)




PSR 11 39 MD3

78,-€



O2 SENSOR for Poseidon MK VI-Se7en

PD003

90,-€


price for t-piece, cable is extra

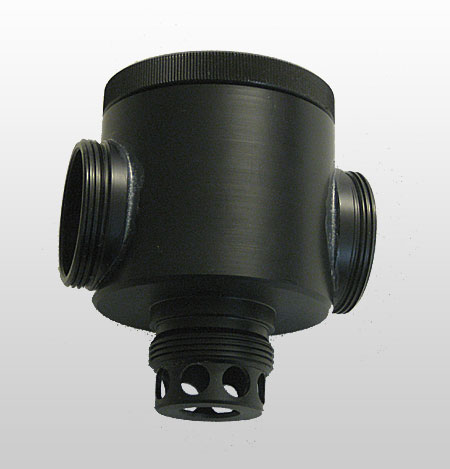

SINGLE SENSOR house (original T-piece)

is for PSR 11 39 MD3/MHD cells, so the same as the unit itself uses

T-piece- including lid and cable gland




D0016b

103,- €

Fischer cable and Plug 7pin

cable lenght can be up aprox 140cm (plus the lenght of the two wires)

This is ready to install for example to the orig. Poseidon third cell holder
The white shoe will be delivered extra so cable can go through cable gland.
One side is marked with a green piece of cable



PD005

120,-€

for t-piece only,
Battery, cable is separate

SINGLE SENSOR house (original T-piece)
with a modified top cover

made for the HUDC from Seabear

It can hold the flat rechargable battery for the HUDC from Seabaer  in an o-ring sealed chamber


The sample here shows the battery in its sealed chamber. A clip holds the battery which also will additional be sealed with a special clear gel


PD0800 T piece with Si-Tech inlet valve

as manual add


ATS0051

195,- € with nut and valve

complete

T-piece for the ATS BMCL

special for for a SI Tech inlet valve,

so it can be used as manual add

does have a watertrap



for more infos check T-pieces for CL΄s






PD0075

245,-€

special 3 CELL SENSOR house for the MK6/7

Mounted directly to the head.

This special house seen left side has a p-port fitting, as Ray hoses were used on that particular house

It also can have original thread fitting of course to keep all original hoses

Mounted it looks like this.....



ATS0075

35,-€





50,-€ with nut

Inlet fitting to convert ATS BMCL fitting to original Poseidon T-piece fitting

the anticollapse part (the lower part) of Poseidon T-piece MUST be cut off!!!

The counter lung itself does have an anticollapse device installed.







---    see how it looks on the canister  ---


PD0050

75,-€

stainless steel  BACKPLATE  adapter

fits all standard BCDs and backplates

two short bolts for the holder, so high can be adjusted.
Distance between bolts is 280mm, so standard backplate fitting
You may also use the lower bold for fixing.
So there are 3 positions possible
edges are rounded

all made from V4a stainless steel.

Locking ring made of POM

--

set of 2 butterfly nuts (stainless steel)  4,- €


PD0025

45,-€

TRANSPORT PLUG

a waterproof plug to close the contacts when Batt is not in,

ideal for transport and shipping to protect electronic pins


PD0030

70,-€





DUST AND WATER cover for Poseidon head

it seals with an o-ring, but is NOT  fixed, so only for transport or storage the unit
if head is taken off to avoid water or dirt to come in


PD0035

95,-€



WATER cover for Poseidon head

a more strong version for better sealing.
A bit thicker and holes for fixing it, holds pressure



PD6001

195,-€

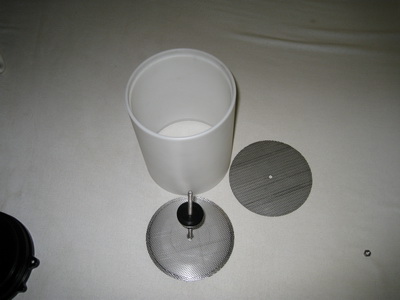

SCRUBBER CARTRIDGE for refilling
max filling with the small 797 is 2,3kg

this article is NOT sold in Germany or the EU
ONLY for export outside the EU available

Since 1.3.2013 the lower sives is fixed in, no set screws anymore


Poseidon PD004

39,-€ / Set

CALIBRATION KIT for the sensor house

the two plugs also fit also the scrubber and T-pieces of course.

the lower cap has a 2mm hole to avoid over pressure.

one plug does have a 3/8 UNF hole to either add a blind plug
if the plugs are used as blind plugs
or use an inflator coupling when you used as cal kit to inject a O2.

SET -  2 plugs and the cap
(without the inflator coupling)


A0024b

35,-€

FILLING adapter for the M26x2
O2 tank and other tanks of course

Adapter M26x2 male  --  G 5/8 female (normal DIN)

so use DIN on the new M26x2 valves
(chromed brass)



PD0010

25,-€ / piece

without nut



fittings to use OTHER HOSES on the Poseidon MK VI

shown here for Ray hoses

price is wihout nuts



PD0012

45,-€

Adapter to fit

JJ-hoses to Poseidon BOV

price per piece, including nut (sample seen left)



PD0013

45,-€

Adapter to fit

40mm-hoses to Poseidon BOV

price per piece, including nut (as seen left)

  PD00xx

Various hose adapters to connect different breaththing hoses to the Poseidon DSV




PD0020

22,-€ / Set

PLUG to close MK VI scrubber (hose fittings)

SET - two


PD0022

45,-€ / Set

PLUG to close MK VI scrubber (hose fittings)



SET  -  with 2 nuts

this allows overpressure to scrubber unit!


PD0024

22,-€ / Set

PLUG to close MK VI hoses

  These will close the hoses


PD0080

85,-€ / piece

REPLACEMENT -  T-Piece

made from one solid block POM
with or without watertrap
(standard is WITH watertrap)


you like both with 3/8 UNF hole..let us know, no prob



yes, it can have a drilled/threaded 3/8 UNF hole on one side





PD0081

100,-€ / piece

as seen here



REPLACEMENT -  T-Piece

made from one solid block POM
with or without watertrap
(standard is WITH watertrap)




special wishes are possible, one side or both sides longer

yes, it can have a drilled/threaded 3/8 UNF hole on one side or on both....




PD0600

165,- Euro

A very special fitting to use the Poseidon DSV in Sidemount configuration for example

seen here made to use original Poseidon hoses/connectors

fits both sides of the DSV of course

only made on special request!


  fittings to use the Poseidon DSV for side or front mount breathers.

PD0300

60,-€

Adapter to fit a

Panorama FFM  --  the mouthpiece of MK VI


PD0325

95,-€



Adapter to fit a

OTS FFM  --  the mouthpiece of MK VI






PD0350

60,-€

Adapter to fit a

Poseidon Atmosphere FFM  --   the mouthpiece of MK VI

check here
